The 532 nm Space Acousto-Optic Modulator (AOM) Series has emerged as a critical component for next-generation satellite communication systems, offering rapid modulation of green-wavelength lasers. This article examines the design principles, key performance metrics, and system-level benefits of deploying 532 nm Space AOMs to achieve gigahertz-class data links and precision pointing in low-Earth orbit (LEO) constellations.

1. Introduction

With the exponential growth of demand for high-bandwidth satellite communications, optical inter-satellite links (ISLs) operating at visible wavelengths have gained traction. The 532 nm band balances atmospheric transmission characteristics and detector sensitivity, making it ideal for spaceborne communication nodes. Central to these links is the AOM, which provides rapid on/off keying (OOK), pulse-position modulation (PPM), and advanced modulation formats (e.g., quadrature amplitude modulation, QAM) by diffracting an incident laser beam using a traveling acoustic wave.

2. AOM Design for 532 nm Operation

532 nm AOMs rely on acousto-optic crystals—commonly TeO₂ or RTP (rubidium titanyl phosphate)—engineered with high figure-of-merit (M²) at green wavelengths. Key design considerations include:

Acoustic Transducer Geometry: High-frequency (200–500 MHz) piezoelectric transducers are patterned to generate uniform acoustic fields, ensuring diffraction efficiency above 80% at drive powers less than 2 W.

Crystal Orientation and Cut: Optimized orientation minimizes acoustic attenuation and optical walk-off, supporting modulation bandwidths up to 1.5 GHz without significant beam distortion.

RF Matching Network: Integrated microstrip networks with impedance matching reduce standing-wave ratios (SWR < 1.2), lowering insertion loss and enabling high-speed operation with minimal heat load.

3. Performance Metrics and Experimental Results

Laboratory characterizations of the Space AOM Series reveal:

Modulation Bandwidth: 3 dB bandwidths exceeding 1.2 GHz, allowing data rates beyond 10 Gb/s with advanced modulation schemes.

Diffraction Efficiency: Peak efficiencies of 85% at 532 nm, stable over temperature ranges –20 °C to +60 °C.

Rise/Fall Times: Sub-5 ns optical switching times, critical for time-division multiplexing and low-latency control signals.

Power Handling: Continuous-wave (CW) handling up to 5 W, with pulsed peak handling exceeding 50 W for short bursts, enabling high-power uplink/downlink bursts.

Testbeds employing these AOMs demonstrated error-free BER (bit error rate < 10⁻¹²) over a 100 km optical bench simulating LEO distances, using PPM at 5 Gb/s. These results underscore the suitability of 532 nm modulators for both high-capacity data transfer and precision beamsteering.

4. System-Level Integration

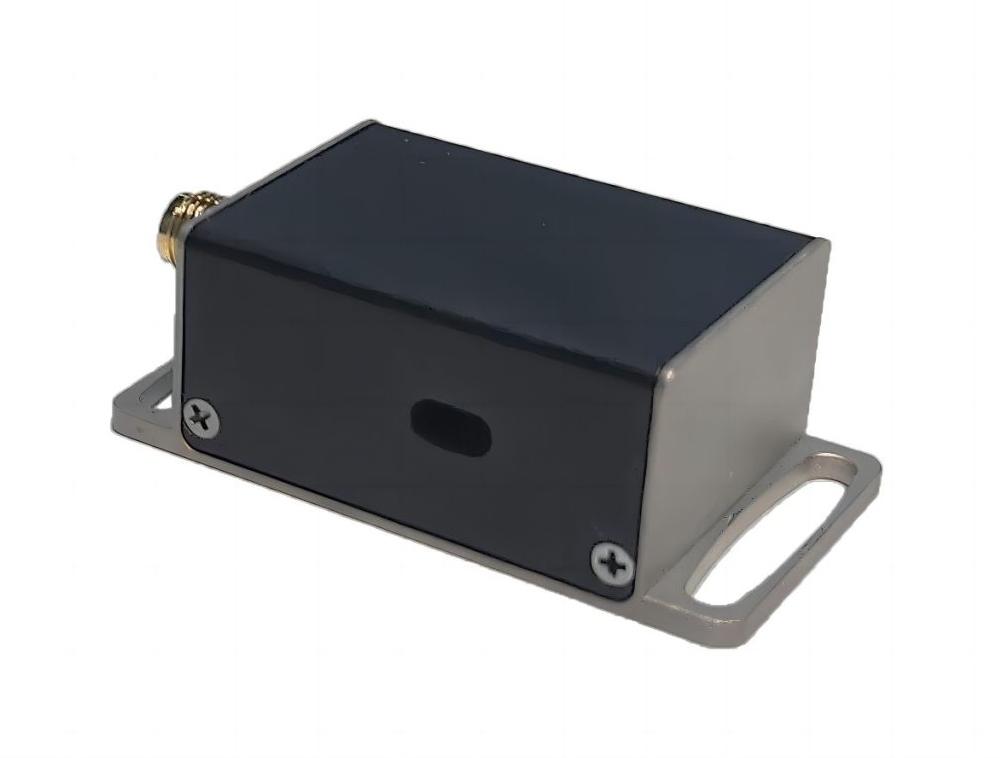

In satellite payloads, the compact form factor of the Space AOM Series (20 mm × 20 mm footprint, 10 mm thick) simplifies mechanical mounting and thermal integration. Key integration aspects include:

Thermal Control: Low drive-power dissipation (< 2 W) reduces the burden on satellite thermal management subsystems, while conduction-cooled mounts maintain crystal temperature within 2 °C stability.

Radiation Hardening: Radiation-tolerant coatings and electronic shielding ensure less than 1% performance degradation over a total ionizing dose (TID) of 10 krad(Si).

Control Electronics: Miniaturized RF drivers with digital control interfaces (SPI/I²C) allow seamless integration into satellite data handling units, enabling in-flight reconfiguration of modulation parameters.

5. Conclusion

The 532 nm Space AOM Series offers a compelling solution for modern satellite communication architectures. Its combination of high modulation speed, efficiency, and robustness meets the stringent demands of both LEO and deep-space missions. Ongoing developments aim to push bandwidths beyond 2 GHz and further reduce drive-power requirements, paving the way for terabit-class optical networks in space.
