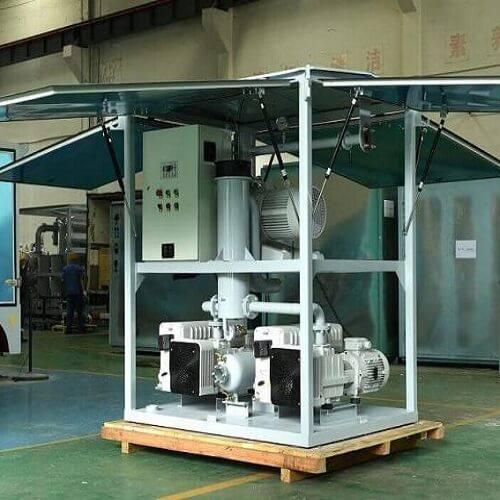

High-voltage transformers rely on insulating oil to maintain dielectric strength and prevent electrical breakdown. Over time, contaminants such as moisture, gases, and particulate matter degrade the oil’s insulating properties. A Double Stage Transformer Oil Filtration Machine is specifically designed to restore dielectric strength by efficiently removing these impurities. This article explores how this advanced filtration system works and why it is critical for high-voltage applications.

The Importance of Dielectric Strength in Transformer Oil

Dielectric strength measures an oil’s ability to withstand electric stress without breaking down. Contaminants like water (even in ppm levels) and solid particles significantly reduce this property, increasing the risk of arcing and transformer failure. Traditional single-stage filters may not fully eliminate these contaminants, making double-stage filtration essential for high-voltage systems.

How Double-Stage Filtration Works

First Stage – Coarse Filtration:

Removes large particulate matter (5 microns and above) through mechanical filtration.

Prevents clogging of finer filters in the second stage.

Second Stage – Fine Filtration & Dehydration:

High-efficiency vacuum dehydration eliminates dissolved water.

Depth filtration or electrostatic precipitation removes sub-micron particles.

Degassing modules extract dissolved gases (O₂, N₂, CO₂).

Key Benefits for High-Voltage Transformers

Extended Transformer Life: By maintaining optimal dielectric strength, the machine prevents insulation degradation.

Reduced Downtime: Faster moisture removal compared to single-stage systems minimizes operational interruptions.

Compliance with IEC 60422 Standards: Ensures oil meets stringent high-voltage insulation requirements.

Conclusion

A Double Stage Transformer Oil Filtration Machine is indispensable for high-voltage transformers, where even minor impurities can cause catastrophic failures. By combining coarse and fine filtration with dehydration, it ensures superior dielectric strength and operational reliability.
